Just a quick news. Starting from April 2019, the Sql Server release service blog has been moved here: https://techcommunity.microsoft.com/t5/SQL-Server/bg-p/SQLServer/label-name/SQLReleases
Automation, proactive monitoring, repeatability, reducing waste of time and technical debt. This is something you should know about when trying to do some DevOps.
Why automation? Because you can reduce technical debt and the number of failures that can happen with a manual interaction. You can create environments using a provisioning procedure without falling in common pitfalls like security misconfigurations, wrong configurations and botched monitoring.
Talking about SQL Server, immediate and proactive notifications represent a great step forward toward automation.
We automate whenever we want to stop doing a bunch of recurring or tedious steps manually. At the same time, we are also improving the overall quality and we are reducing the amount of things that can (and will) go wrong.
We are also optimising on how we use our time, because we can just ignore what the automation is doing for us and focus on that something that really needs our attention.
Finally, in this modern and notification-based world, emails generate too much white noise to deal with. In this article, we will learn how to integrate SQL Server tasks’ notifications with one of the most used collaboration tools: Slack.
Keep in mind that this is not the only way to get this done. This guide would help you to better understand why we’re doing this (eventually why DevOps), and not strictly how to do it, even if we’ll see a real working example.
Note: Don’t use SQL Server Express edition. This version doesn’t support any SQL Server Agent task as well as the Database Mail, which we’ll need hereafter. Also, about slack, you must create a paid account, because the integration described below will not work with a free profile.
In order to send emails, we will use an SMTP sever. It can be either a private Microsoft Exchange, PostFix, or any other on-premises solutions, together with a cloud delivery service, like SendGrid, SendInBlue, MailJet, or Office 365.
In a team like mine, which uses chat as a daily communication driver, centralizing every business and technical message could be a great step forward for the members of the team in terms of awareness and knowledge sharing. Business roles can use that tool as well, so we can chat to each other switching topics between tech and functional discussions. It’s just a matter of how Slack (in our case) is configured with channels and naming conventions. A good setup helps us to better organize our meetings, small talks and any other topic related to implementations. This is a cool argument to speak about, but a little bit out of the scope of this guide. We will focus on notification bots instead.
SQL Server is able to send emails with its built-in features out-of-the-box, but we’d like to centralize every notification inside Slack, gaining the following advantages:
- Instant notification
- Tailored focus (custom sound instead the same popup for all the incoming emails)
- Quickly involve people that are not following the channel by a mention
- Relay the problem description within the chat
- Take actions as soon as the notification is received
The proposed solution
Now, how can we send notifications from SQL Server in an easier way than using custom code or a Slack incoming webhook? Is there any integration or a Slack app? Yes. And guess what? I think you’ll like it because you don’t need to write a single line of code, and you don’t need to choose between CLR, PowerShell or any other language. It’s ironic, but the integration is called “Email”.
The purpose of this article is just to describe Slack as a collaboration tool. Further details are provided here. As we said before, the following samples work only if you get a Slack account.
The Slack Email integration
This is the app to work with: Email. Its configuration is based on a four-step wizard:
- Select the channel (or create a new one).
- When added, set the name and a short description of the new contact (bot) in Slack.

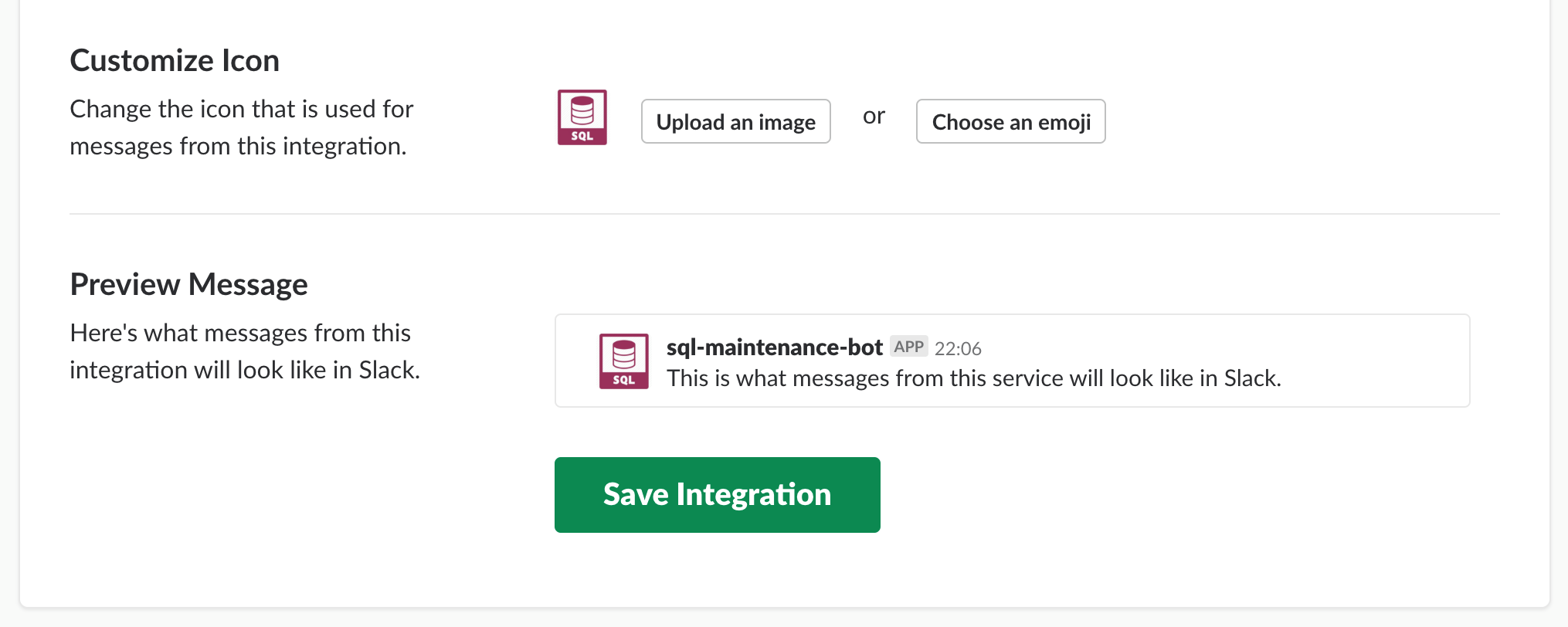

- Change the avatar (it’s important to recognize the bot at a glance)
- After saving, copy the email address the app created for you.
A word about the “Hide this address” checkbox: this is useful if you want to hide the address to any other member of your workspace. You will be the only user able to read it if you check that box.
Type of SQL Server notifications and setup
As a DBA, we’re managing the following types of notifications on a daily basis:
- SQL Server built-in and custom Alerts
- Job execution status
- Integration Services custom emails (within the packages)
- External monitoring tools (which monitor SQL Instances)
With the exception of SSIS custom emails and external monitoring tools, everything is managed by Database Mail. This is a lightweight layer that allows us to send emails directly from a SQL Server Instance, connecting to a SMTP server.
To setup Database Mail you can follow this guide from Microsoft Documentation.
Once this is up and running, you can manage the notifications using SQL Server Operators. An operator is an alias managed by the SQL Server Agent which you can use to send emails and other types of messages, like pagers and Net Send.
Creating an operator is simple, just invoke the following system stored procedure:
USE msdb; GO EXEC dbo.sp_add_operator @name = N'<name here>', @enabled = 1, @email_address = N'<email here>'; GO
If you’re asking what email address you should use, it’s easy to say. You must fill the @email_address parameter with the address returned by the Email app integration for the channel you will send to (firstname.lastname@example.org in the example above). But, what about the name parameter? In my opinion, the best name is the one that helps us to understand where the message will be sent to. Suppose that we’d like to notify something about some index maintenance jobs. We could call the operator Slack Indexes Maintenance, Slack Indexes Maintenance Operator and so on. With such names, you will immediately know what we are going to send to Slack as the topic is related to index maintenance.
Thus, you’ll get the following snippet:
USE msdb; GO EXEC dbo.sp_add_operator @name = N' Slack Indexes Maintenance Operator', @enabled = 1, @email_address = Nemail@example.com'; GO
Slack channels naming considerations
I’d like to share with you my thought about the channel naming conventions. The principles to follow when naming channels, are:
- Readability (clear for everyone)
- Awareness (know what)
- Style and Rules (know how)
- Repeatability (keep using it from now on)
That being said, if the channel name describes a single action (like indexes maintenance in the above example) the operator which will send notifications should be unique. The reason is simple enough: we know that Indexes Maintenance Operator is sending messages to #sql-idx-maint-alerts (readability) and everyone knows that this is a one-to-one communication between a SQL Server Operator and Slack (awareness). Everyone knows that the “sql” channel prefix indicates SQL Server-related notification and the “alerts” suffix indicates that is an issue to pay attention to (style and rules). At the same time, everyone knows how to do the same with another pipeline of messages in the future (repeatability).
On the other hand, using a general purposes channel, like #sql-maint-alerts, allows us to be ready to future changes. Suppose that index maintenance will not be the only operation we’re executing in our servers (and typically isn’t). Does it make sense to create a new operator called for example, Database Concurrency Check Operator, which sends to a specific purpose channel? Clearly not.
In the end, a generic purpose channel gives the opportunity to hold more than one topic. All the notification sent to that channel should be, let’s say, of the same category to avoid too much generalization.
These solutions (one channel for more operators or a one-to-one solution) work equally well, it’s just a matter of how you’re designing your Slack channels. I suggest to avoid the “one channel to rule them all” pattern, because you’ll get thousands of mixed notifications without any clear idea behind them. After all, a noisy channel with messy content is something that will not be considered for a long time and will be eventually dropped.
Alerts are triggers that communicate to an operator that something went wrong. This Brent Ozar’s article offers a good list of alerts that need attention. Here you can find their descriptions, based on severity. The binding is straightforward. All you need to do is to link the operator to the alert:
When one of those events occur, an operator is alerted. Then, it sends the message using its setup – in our scenario, an email. If the operator uses the Slack Email app, the email will be sent to the Email app, and the integration will redirect it to Slack.
Binding job execution statuses

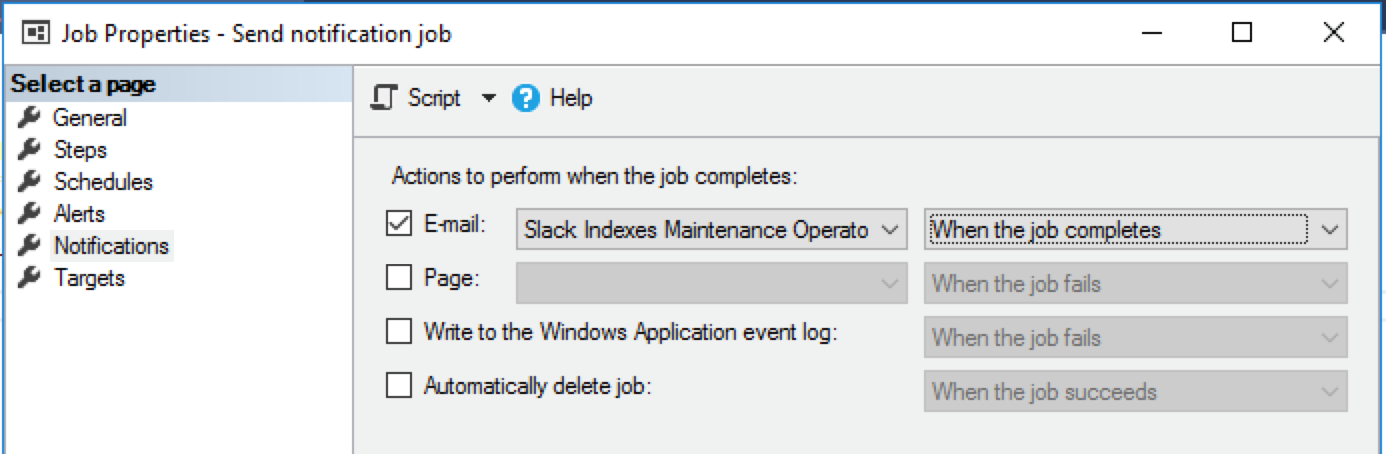

Let’s see how we can use the notification mechanism to monitor SQL Server Agent Jobs. Each job lets you configure what to do in case of failure, success or completion of its execution. The binding is similar to the alert’s one:
Once the result is collected, based on the configurations you’ve set up, this job will send an email to the app.
Binding custom Integration services email
In order to send an email from a SQL Server Integration Services package (aka .dtsx) you need to configure the SMTP server within the package itself. This is a little out of scope, because it’s not really a SQL Server notification. You can leverage the power of SSIS and prepare a rich HTML-formatted message; the result is nice to read and informative like in these examples:
Cool stuff, isn’t it? It’s simply a .NET script in SSIS, which uses the System.Net namespace. Although the SSIS package is executed within a SQL Server Agent job, the default notification message that SQL generates is not easy to read. The message you always get is:
JOB RUN:<name> was run on <date/time> DURATION: x hours, y minutes, z seconds. STATUS: Failed. MESSAGES: The job failed. The Job was invoked by Schedule xyz (<name>). The last step to run was step xyz (<name>)
Decorating the package with a more detailed email will improve the readability and the accuracy of our notifications.
Setup an external monitor for notifications to Slack
SQL Server is often (hopefully) monitored with specific counters. We’re using PRTG monitoring tool to measure them, and when a baseline changes and a threshold is hit, we send notifications to Slack. How? Again, sending to the Email app integration, specifying the right channel to send to and getting this:
The above report has been truncated. In a complete version of it, you’ll find the complete details of the measures, like the name of the servers, the sensors links, the grid with all the results, and everything you can see inside a PRTG admin portal.
Let’s see a more complete example, using a SQL Server alert. We’ll use the Severity 17 alert. Severity 17 is simple to raise and it describes a missing or insufficient resource when executing a command:
USE msdb; GO EXEC msdb.dbo.sp_add_alert @name=N'Severity 017', @message_id=0, @severity=17, @enabled=1, @delay_between_responses=60, @include_event_description_in=1, @job_id=N'00000000-0000-0000-0000-000000000000'; GO
Set the Response for the Severity 17 alert to “Notify Operator”, via email:
Run the following severity 17 based t-sql script:
RAISERROR(N'An error occurred Severity 17:insufficient resources!', 17, 1) WITH LOG; --don’t forget to use WITH LOG GO

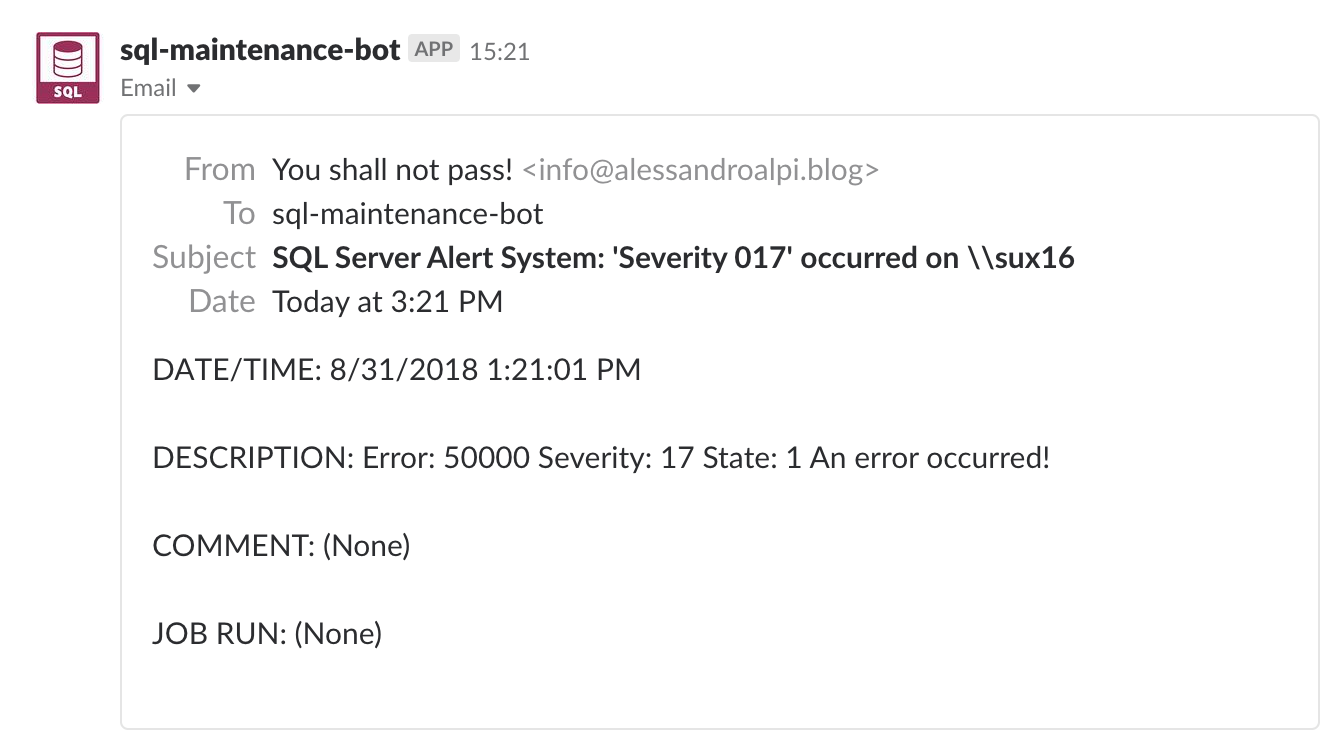

Go to your Slack account. If you’ve configured everything correctly, you should see the following:
Did it work? Great! If not, continue reading.
If you don’t see the notification try these steps:
- Be sure that your Slack account is confirmed (its email too)
- Once the Slack account is confirmed, check if the channel still exists (CTRL+K -> name of the channel)
- Click on “Customize Slack” in the drop down menu of your Slack client/webpage, then click on Customize App in order to check whether the Email integration is active or not:
- Verify Database Mail configuration (try to send the test email)
- Verify the operator configuration (is it enabled?)
- Verify the alert configuration (did you bind the response with email to the operator? Is it enabled?)

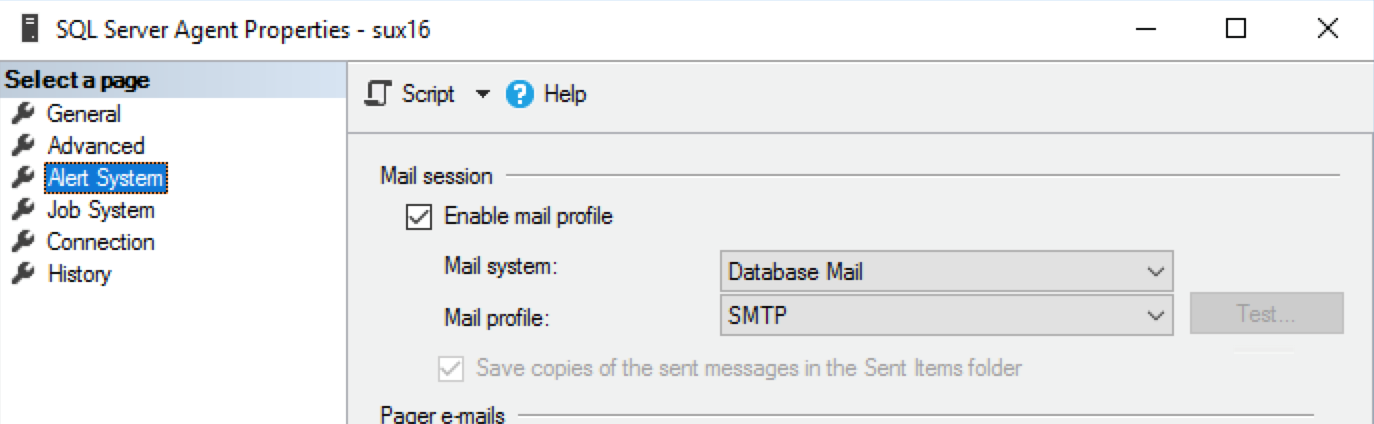

- Verify the SQL Server Agent email profile configuration (is it enabled? Is it the right one?)
There are some disadvantages when using this kind of integration. For example, you cannot customize the message, unless you do it inside a .NET script. The Slack Email Address is publicly available, albeit hard to discover, so anyone can send message to your private slack channel by sending emails to that special address. Again, you cannot send the notification to more than one Slack channel or outside of the Slack world. In reality native SQL email notifications show the same limits, where email addresses of distribution lists are similar to Slack channels.
For our purposes, this is a very-low-effort automation with a high return in terms of value. With a couple of clicks, you can setup an email address representing a Slack channel, and, with little more, you can get notifications in a smart and comprehensive layout.
Everything is kept inside the collaboration chat tool we are using massively, every day. In the end, this example embeds one of the core DevOps principles (automation) and provides huge cross-role and cross-team value, especially when the channels include also network and server teams.
I hope that you’ll give this a try.
Years ago, with SQL Server 2016 release, Microsoft came up with a separated brand new version of SQL Server Management Studio. It’s been a happy day for the SQL Server community and database developers.
Shortly afterwards, our company started to migrate every instances from older version of SQL Server to the 2016, using SSMS 17.*. Developers have already jumped into Visual Studio 2017 and everything seemed to work like a charm, until we started deploying integration services via the new SSMS, after we converted them to 2016 TargetServerVersion (which is NOT the Project Version).
The TargetServerVersion is the SSIS version, also for the deploy operations, while the Project Version setting tells to Visual Studio how to open projects based on .dtproj specifications on the XML projects definitions.
Some days ago I’ve realized that after updating to the latest build of SSMS (17.8.1), the .ispac deployment is actually executing the latest build of the Integration Services Deployment wizard (aka ISDeploymentWizard.exe). As a result every deploy of .ispac files, regardless trying double click or deploying directly from the Integration Services Catalog, the SSISDB, failed with one of the most scaring error message ever:
“[…] The Script Task <unique_name> uses version 15.0 script that is not supported in this release of Integration Services […]“
What? Why? I’ve a workstation with SQL Server 2016 and the related Integration Services 13.0:
The computer I’m speaking of has the same build of mine, nobody has installed any other Integration Services versions anywhere. Andy Leonard explained this behavior in this blog post. Unfortunately, in my scenario, I cannot solve the problem.
Let’s try to explain better.
The workstation I’m working on has SQL Server 2016 (build 13.0.5149.0) and Integration Services 13.0 on Windows 10 Pro. I’ve got a simple package with a single script task which does literally anything:
As Andy suggested us, I’ve changed the TargetServerVersion to SQL Server 2016, so I’ve got C# 2015 compiler for scripts:
First execution and deploy
Executing it locally, nothing happens, but it happens in a green way (success):

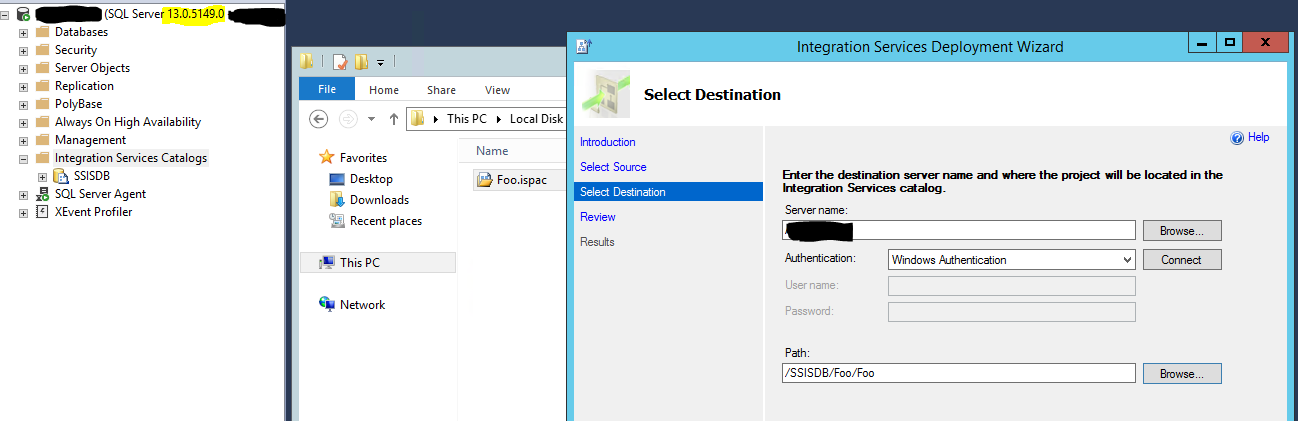

Ok, now we’re going to deploy to the other machine, generating the .ispac file and double clickin on it. It’s important to make sure that you’re double-cliking the .ispac file. Do not right click on the Integration Service Catalog project folders because SSMS will execute the latest build of ISDeploymentWizard.exe by design.
When double clicking, the app selector should use the version related to the TargetServerVersion setting of the .ispac. This works for many of my other computers. But for one of them, here is the screen:

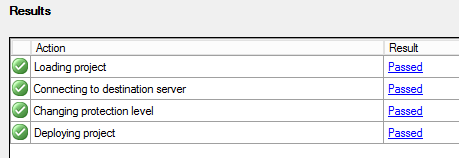

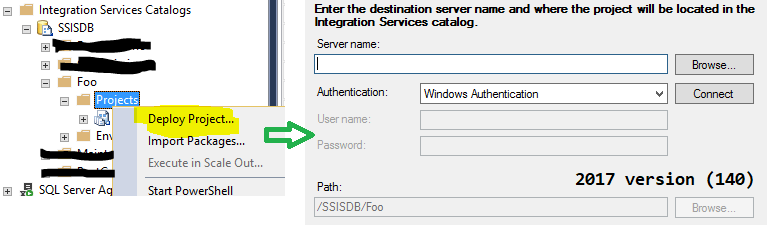

Hey! This is 2017 also when clicking on .ispac file. Let’s try to deploy using the new tool. The deploy succeeded.

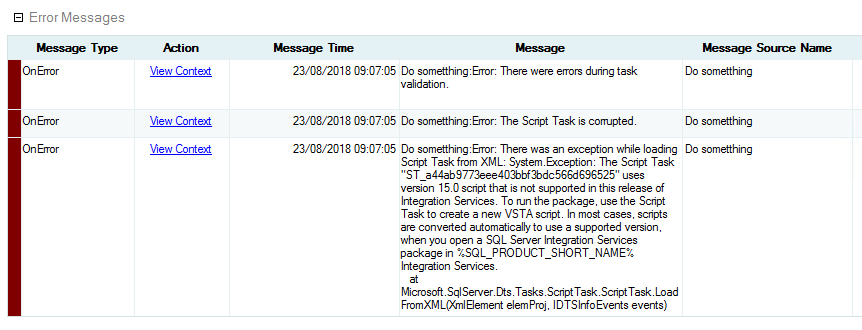

And now, let’s try to validate the package execution via SSISDB, right clicking on the project itself and selecting “Validate…”. This is the result of the empty script package validation:
I’ve tried on six different machines, five ran successfully and ONLY ONE returned the above error message. Still stuck in the middle.
What have we changed?
Just the setup of SSMS (17.8.1) updating the 17.7 one. Once again, the same setup on all six machines. Five by six worked, this one is trying to kill me.
For some strange reason, something (I assure you all, not someone) has changed the registry in the .ispac application association, maybe when double clicking for the first time the file in a pending reboot (?). We’re still investigating, since we used to avoid any change in production without permissions and processes. That said, it’s weird. And it was so difficult to get.
Easy to say, now that we’ve figured out the root consequence. Not so good, but changing the registry on the key HKEY_CLASSES_ROOT\.ispac with the 130 executable (IntegrationServices.ProjectDeploymentFile.130) fixed the unwanted behavior. The key has been set to IntegrationServices.ProjectDeploymentFile.140 right after the update from 17.7 and 17.8.1.
Instead of changing it via regedit, you can try an “open with…” with “use default” checked in order to force the association between .ispac file and the right ISDeploymentWizard.exe version. But this time, in this machine, it didn’t work. This is the reason why I tried the regedit action.
I have to say a big thanks to Andrea Amantini, one of my peer, which is well known for his ability to find out “a needle in a haystack.”. Strange things happened here. A combination of Murphy’s law, a sort of “black” friday and a pending reboot. Hopefully this helps someone, at least.
It’s September, a month whose the start is the beginning of many things, especially in Italy. Kids start over the schools, Companies invest, and what about projects and events?
You know, I really love to do both. But in this post I’d let you know how I feel proud about my work in the past four years. Thanks to the help of my employees and co-ops, I did organise four SQL Saturdays in Parma (2014/355, 2015/462 and 2016/566), making our small town a big SQL Server City. Who would’ve thought it? Yes, maybe in my mind, there was something that pushed me to try, but it could have an epic fail. However, I did it, and it was an astonishing set of records. It started as a quest in an Role Play game, and now we’re in front of this great SQL Saturday. Something to be really proud of.
Two years ago, I felt the need to add a new event, which would have to support a new way of thinking about the IT roles that I was aware of. And that was when DevOps came out. A new buzzword that needed to get a deep explanation, in terms of culture and approach. Combining my passion to The Simpsons series (especially considering Homer Simpson) and DevOps stuff, I’ve made up DevOpsHeroes, whose acronym is DOH, the Homer’s exclamation. And now, for the second year, Developers, IT Operations people, DBAs and PMOs will share their experience about how to integrate, cooperate and make IT world more productive. Another event, another thing to be proud of.
After the introduction, let me give you some important details about these events, sorted by upcoming date:
DevOpsHeroes 2017 – Parma (http://www.devops-heroes.net/)
- Hashtag: #DOH17
- Date and Location: Friday, 20th October @ CDH Parma Hotel & Congressi
- Entrance fee: free (lunch included)
- Duration: from 8am (registrations until 9am) to 6pm
- Registration link: via EventBrite
- At the registration desk:
- sign up with the EventBrite app
- you will receive the welcome kit
- special guests: Martin Woodward (Principal program manager for DevOps in Microsoft)
- session languages: ITA/ENG
Sql Saturday 2017 – Parma (http://www.sqlsaturday.com/675)
- Date and Location: Saturday, 18th November @ Univeristy of Parma
- Hashtag: #SQLSAT675
- Entrance fee: free (lunch included)
- Duration: from 8am (registrations until 9am) to 6.30pm
- Registration link: https://www.sqlsaturday.com/675/registernow.aspx
- At the registration desk:
- you will use the SpeedPASS
- you will receive the lunch ticket
- you will receive the welcome kit
- session languages: ITA/ENG
However, this year I’d to thank my helpers at Engage IT Services Srl, the great support of Upgrade Srl (Andrea, Federica and Riccardo, that organised with us the DOH event), HPE and also many communities, like DotDotNet.org and mostly our great community GetLatestVersion.it. A special thanks goes to Windowserver.it, which will record sessions, live streaming and interviews. Speaking about SQLSaturday, the sponsor page depicts how the event is supported. A big thank goes to all of them!
What the future will reserve to us in Parma? I think that I could try to add another event, maybe on IoT topics, because I feel that the world will change following that direction and also, hopefully, my newborn Giulio will play with my and some robot 🙂
Alternatives could be changing the format, like with a TED event or something like it. Who knows? I’m pretty sure that I’ll get a lot of help from now on. This year has been a demonstration of it. I started alone, and now we work in five. The last thing to be proud of. Wonderful!
To repair Suspect database error in MS SQL 2005, 2008, 2012, 2014, 2016 and 2017 read this article to recover SQL Server database from Suspect mode.
What is Suspect Database Error?
Microsoft SQL Server serves as a storehouse for data that is needed for different software applications on a single system or across a network. Sometimes a user may face a situation where a database in the SQL Server instance currently under running state is marked as Suspect. This condition will lead to a failure in creating a connection with the database. Such a database which is tagged as Suspect can be accessed by removing the causes for this problem. The forthcoming article will discuss the causes for this problem to occur and the possible solutions to repair suspect database from SQL Server 2005, 2008, & 2012.
The error message shown to user is somewhat similar to the one given below
Starting up database ‘abc_d’.
Error: 9003, Severity: 17, State: 5.
The log scan number (189623:15:2) passed to log scan in database ‘abc_d’ is not valid.
The above-mentioned error shows that there is some corruption of the log file(.ldf) and does not adhere to the data file(.mdf). Other error messages can also be shown depending upon the cause due to which the database has been categorized as Suspect.
User queries help in getting a better idea about the problem and to recover SQL database.
“I am currently using SQL Server 2008 edition on my Windows 7 system and there are many applications of mine that are dependant on it. Recently I have been facing difficulties in connecting my applications to some of my Databases and they are being shown as Suspect. Kindly guide me to recover SQL database from Suspect mode.”
SQL Server Database Shown as Suspect: Possible Reasons
There are a number of reasons why SQL Server marks a particular Database as Suspect.
Some of these reasons are mentioned as follows
- Corruption present in the SQL Server Database
- Insufficient space available to SQL server to repair suspect database during startup.
- The files of Database are in use by OS or other Backup software
- Sudden SQL Server Shutdown, Hardware or Power Failure
There exist a number of techniques for solving the issue of Suspect SQL database and broadly they can be classified as Manual and Automated. The upcoming section will try and explain a Manual technique for achieving this goal.
Quick Tip: If you want to skip the tedious & complex manual approach then it is highly advised to use an automatic tool such as SQL Recovery to efficiently recover SQL database from Suspect mode
Repair Suspect Database Manually
Implement the steps given below to recover Suspect SQL Server Database and to access important data.
1. Bring Database in Emergency Mode using the following code
ALTER DATABASE abc_d SET EMERGENCY
2. Execute DBCC CHECKDB command.
This will scan and check the physical and logical integrity of objects present in the marked database
DBCC CHECKDB (abc_d )
3. Bring the Database in Single Mode using the below-mentioned query
ALTER DATABASE abc_d SET SINGLE_USER WITH ROLLBACK IMMEDIATE
4. After the Database is in Single Mode, execute the following code to repair suspect database
DBCC CHECKDB (abc_d, REPAIR_ALLOW_DATA_LOSS)
5. Lastly, restore Multiple access to the database by executing the query
ALTER DATABASE abc_d SET MULTI_USER
Repair Suspect Database by Manual Method: Shortcomings
- Manual solution consumes a lot of the users’ time for SQL server suspect database repair
- High risk of losing data forever during manual approach to recover SQL database from suspect mode
- A Large number of queries to recover SQL database make it complex for non-technical users.
The Suspect database problem is a common issue faced by users of SQL Server database and it has various causes. There is a set of TSQL commands to overcome this error but it poses many issues during implementation. It is better to use automated tools designed specifically for this purpose to repair suspect database.
Directly from the SQL Server Release Service blog, here the latest updates for SQL Server 2012 and 2017:
(SQL Server 2012 SP4 will be released
next month in September 2017 and a release announcement with detailed information on improvements will be shared at the time of the release.)
Stay Tuned! 🙂
Directly from the SQL Server Release Service blog, here the latest updates for SQL Server 2012 sP3 and 2016:
Also, you can download the Microsoft Azure Database Management Pack (184.108.40.206) here.
Stay Tuned! 🙂
